| VG250 | φ350 | 21 | 454.5 | 392.5 |
| ISO-B250 | φ335 | 16 | 454.5 | 392.5 |

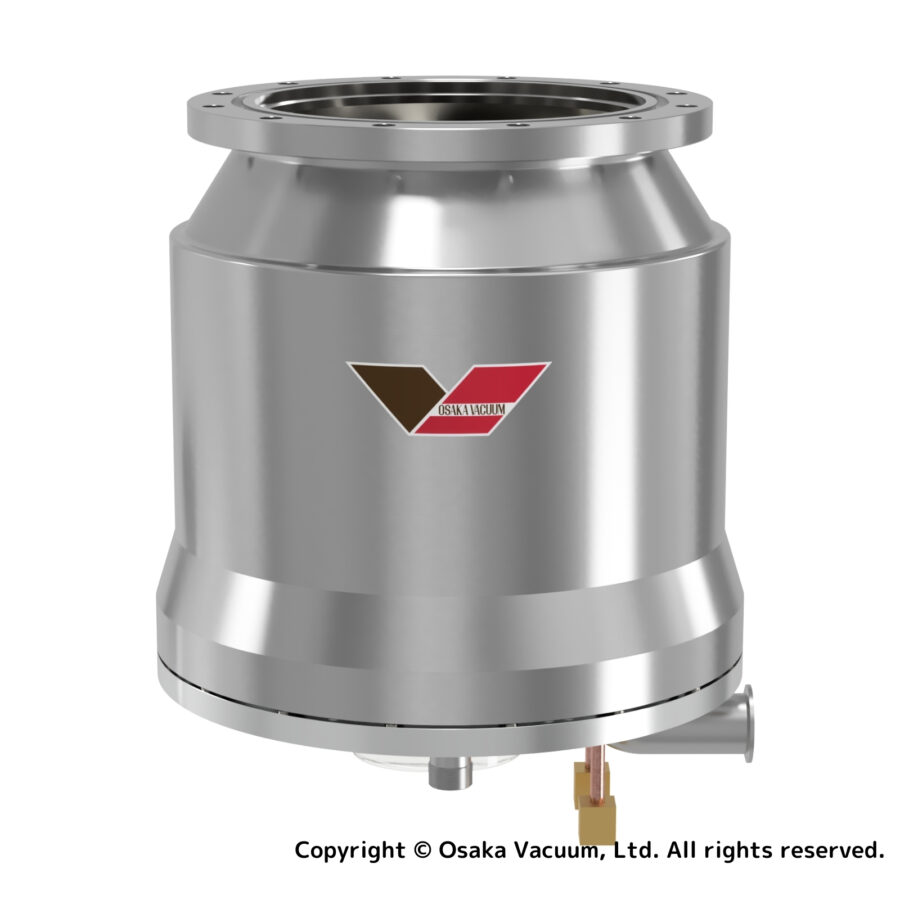

Ball Bearing Turbo Molecular Pumps
TG2810/TG2813
Oil-lubricated ball bearing type Turbo Molecular Pumps
Features
- Corrosive resistant type for corrosive gases.
- Durable structure for air inrush.
- Sturdy, resists external impacts.
- Serial communication
※RS232C Serial interface - Conforms to recognized safety standard: NRTL / SEMI-S2 / CE
Application
- Semiconductor production
- Electronics gun exhaust, ionization source exhaust
- FPD manufacturing
- Surface treatment, surface modification
- Manufacture of various electronic components
- Lamp production, optical components production
- Accelerating device, radiation facility, nuclear fusion research
- Heat treatment
- Research and development
*TG-F, TG-M and TGkine series is available for clean processes.
Specifications
Specifications
| Model | TG2810/TG2813 | |
|---|---|---|
| Inlet | VG250 / ISO-B250 | |
| Outlet | KF40 | |
| Volume flow rate | N₂ (L/s) | 2800 |
| N₂ (with protective screen) (L/s) | 2600 | |
| H₂ (L/s) | 2400 | |
| Max. compression ratio | N₂ | 1×10⁸ |
| H₂ | 6×10³ | |
| Base pressure | Pa | <1×10⁻⁶ |
| Torr | <7.5×10⁻⁹ | |
| Max. throughput ※1 | N₂ (sccm) | 543 |
| Startup time | min | 10～15 |
| Shutdown time | min | 25～30 |
| Max. backing pressure | Pa | 270 |
| Torr | 2 | |
| Recommended backing vacuum pump | L/min | ≧1500 |
| Mouting orientation | Vertical (±10°) | |
| Lubrication oil quantity | mL | 260 |
| Weight | kg | 100 |
| Controller model | TC3213 | |
*1: This max throughput is based on a 3000 L/min backing pump.
[Ambient temperature for use]
The base pressure is only guaranteed at an ambient temperature ranging from 10 to 23°C. The operating temperature range is 10 to 32°C for the air-cooling models and 10 to 40°C for the water-cooling models. The base pressure is only guaranteed at a water temperature of 30°C or below. The water temperature range is 10 to 35°C.
[Applicable Gases]
Some gases may damage the bearing grease or internal components. Contact us about the types of gases that can be used.

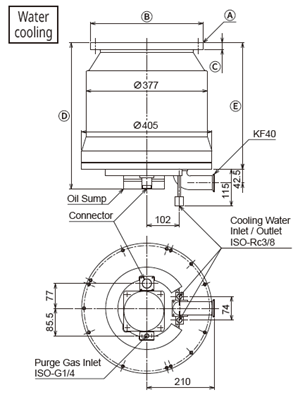

Dimensions
* All bolt holes of the inlet flanges straddle the centerlines.
* Reprinting is prohibited without permission. Contents are subject to change without notice.
Performance curve

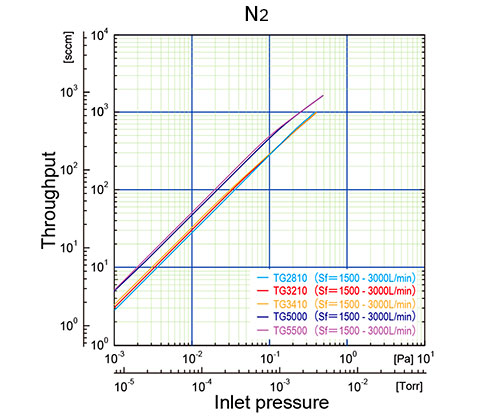

【Gus throughput】

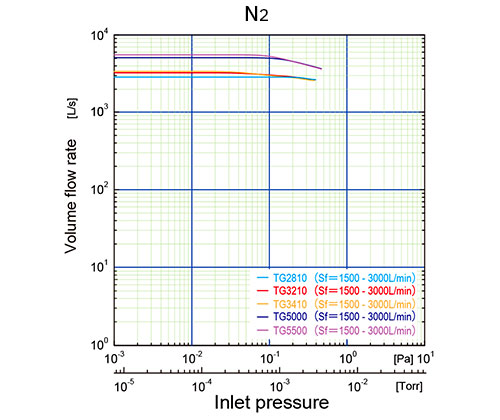

【Volume flow rate】
* Sf: Volume flow rate of the backing pump
* Reprinting prohibited without permission. Contents are subject to change without notice.
Controller
| Controller model | TC3213 |
|---|---|
| Input Voltage | AC 200-230 V |
| Input Phases | Single |
| Input Frequency (Hz) | 50/60 |
| Rated Output Frequency (Hz) | 360 |
| Input Power (VA) | 2200 |
| Weight (kg) | 8.2 |
| Communication interface | Parallel I/O・RS232C |
| Standard accessories | ・Input connector: 1 ・Remote connector: 1 ・Serial communication connector: 1 ・Ferrite core: 1 ・Manual (Instruction, Serial communication instruction): 1 copy each |
