| VG250 | φ350 | 16 | 340 |
| ISO-B250 | φ335 | 16 | 340 |
Ball Bearing Turbo Molecular Pumps

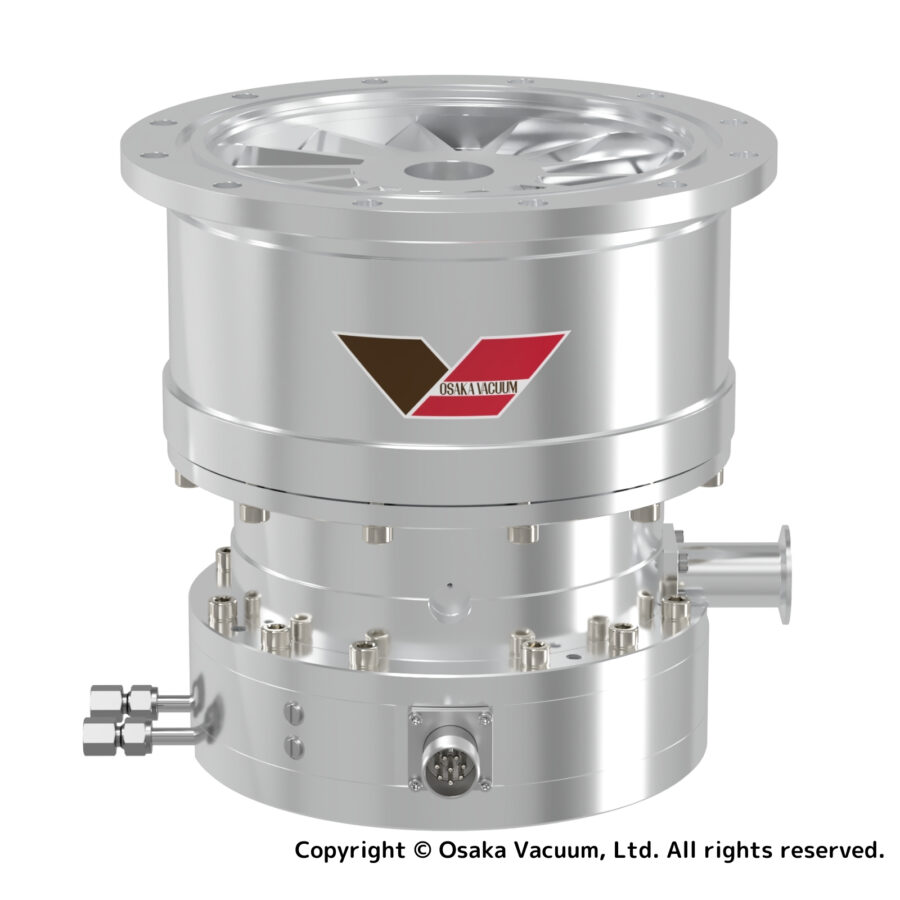

TG2400F
Grease-lubricated ball bearing type Turbo Molecular Pumps
Features
- Any orientation
- Compact size
- Energy-saving
- Quick shut down with gas vent
- Durable structure for air inrush
- Serial communication
- Certificated safety standard: NRTL / SEMI-S2 / CE
Application
- Semiconductor production
- Electronics gun exhaust, ionization source exhaust
- FPD manufacturing
- Surface treatment, surface modification
- Manufacture of various electronic components
- Analysis, testing equipment
- Lamp production, optical components production
- Accelerating device, radiation facility, nuclear fusion research
- Heat treatment
- Research and development
※ If exhausting corrosive gases, choose from our chemical-use TG-M or TG Series.
Specifications
Specifications
| Model ※3 | TG2400F | TG2400F-40 | |
|---|---|---|---|
| Inlet | VG250 / ISO-B250 | ||
| Outlet | KF40 | KF40 | |
| Volume flow rate | N₂ (L/s) | 2400 | |
| N₂ (with protective screen) (L/s) | 2300 | ||
| H₂ (L/s) | 1100 | ||
| Max. compression ratio | N₂ | 1×10⁸ | |
| H₂ | 1.4×10³ | ||
| Base pressure | Pa | <1×10⁻⁶ | |
| Torr | <7.5×10⁻⁹ | ||
| Max. throughput ※1 ※2 | N₂ (sccm) | 900 | 1500 |
| Startup time | min | 5～7 | 5～7 |
| Shutdown time | min | 15～18 | 15～18 |
| Max. backing pressure | Pa | 200 | |
| Torr | 1.5 | ||
| Recommended backing vacuum pump | L/min | ≧500 | |
| Mouting orientation | Any orientation | ||
| Weight | kg | 45 | |
| Controller model | TC2403 | TC2403-10 | |
※1: This maximum throughput is based on a 1000 L/min backing pump.
※2: Differs according to the power supply model.
[Ambient Temperature]
The base pressure is guaranteed only at ambient temperatures ranging from 10 to 23°C. The operating temperature range is 10 to 32°C for the air-cooling models and 10 to 40°C for the water-cooling models. The base pressure is only guaranteed at a water temperature of 30°C or below. The water temperature range is 10 to 35°C.
[Applicable Gases]
Some gases may damage the bearing grease or internal components. Contact us about the types of gases that can be used.

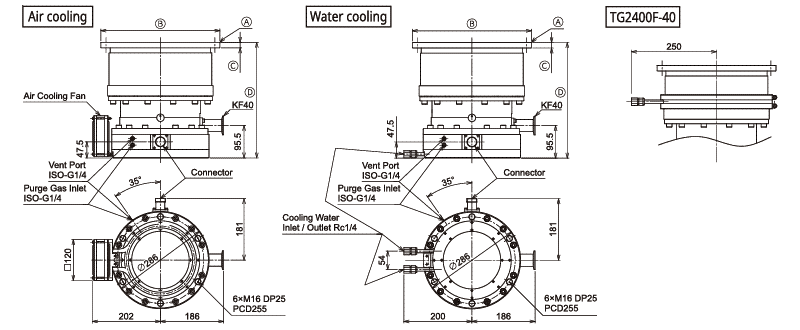

Dimensions
※ Bolt holes for the flange on the intake are arranged symmetrically around the centerline.
※ Reprinting prohibited without permission. Contents are subject to change without notice.
Performance curve
【Gus throughput】
【Volume flow rate】
※ Sf: Volume flow rate of the backing pump
※ Reprinting prohibited without permission. Contents are subject to change without notice.

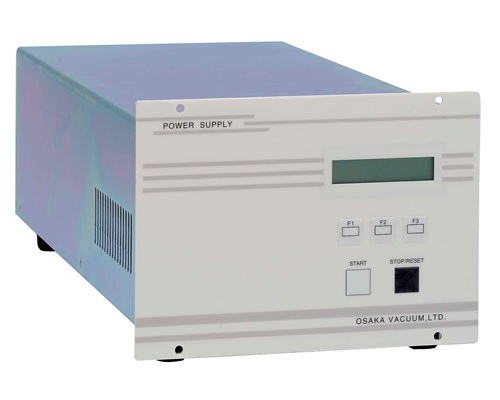

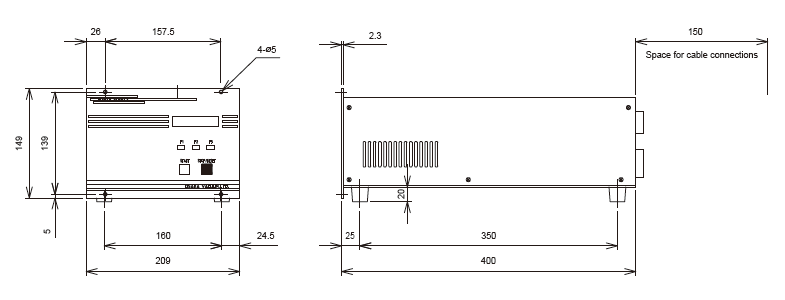

Controller
| Controller model | TC2403 | TC2403-10 |
|---|---|---|
| Input Voltage | AC 200-230 V | AC 200-230 V |
| Input Phases | Single | Single |
| Input Frequency (Hz) | 50/60 | 50/60 |
| Rated Output Frequency (Hz) | 520 | 520 |
| Input Power (VA) | 1200 | 1200 |
| Weight (kg) | 8.2 | 8.2 |
| Communication interface | Parallel I/O・RS232C | Parallel I/O・RS232C |
| Standard accessories | -Input connector: 1 -Remote connector: 1 -Serial communication connector: 1 -Ferrite core: 1 -Manual(Instruction, Serial communication instruction): 1copy |
-Input connector: 1 -Remote connector: 1 -Serial communication connector: 1 -Ferrite core: 1 -Manual(Instruction, Serial communication instruction): 1copy |
