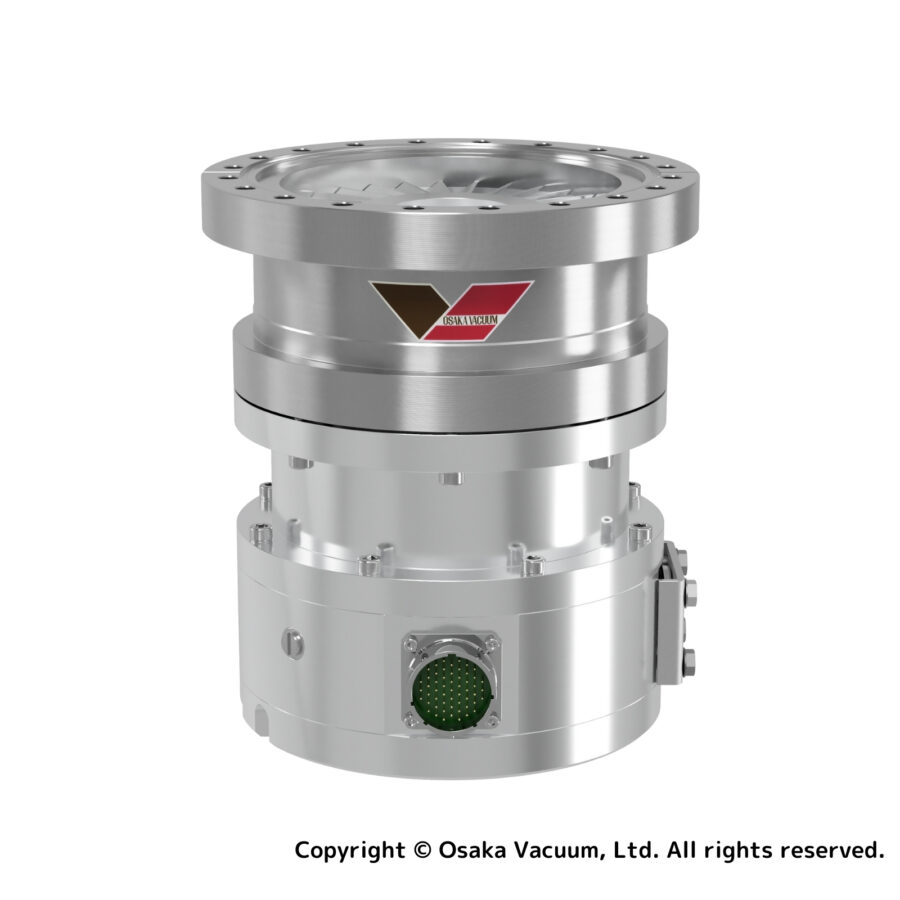

Magnetically Levitated Turbo Molecular Pumps
TG-ML SERIES
Ultra-Low Vibration Type Magnetically Levitated Turbo Molecular Pumps
Features
For advanced applications including analytical instruments, nanometrology, and next-generation semiconductor lithography that require an ultra-low vibration pump.
- Less than 1 nm in radial and axial vibration amplitude.
- With an external damper, less than 0.1 nm of vibration amplitude can be achieved.
Application
- Ultra High Resolution Electron Microscopy, Analytical Instruments, R&Ds
- E-Beam Lithography, EUV, XPS, CD linewidth tool, SEM/TEM
Specifications
Specifications
| Model | TG390ML | TG420ML | TG900ML | TG1300ML | ||
|---|---|---|---|---|---|---|
| Inlet | ISO-B100 / VG100 / CF100 | ISO-B160 / VG150 / CF160 | ISO-B160 / VG150 / CF160 | ISO-B200 / VG200 / CF200 | ||
| Outlet | KF25 | KF40 | ||||
| Volume flow rate | N₂(L/s) | 340 | 400 | 900 | 1300 | |
| N₂ (with protective screen) (L/s) | 320 | 370 | 860 | 1230 | ||
| Ｈ₂(L/s) | 290 | 300 | 1050 | 1200 | ||
| Max. compression ratio | N₂ | 1×10⁸ | ||||
| H₂ | 4.5×10³ | 1.5×10⁴ | ||||
| Base pressure | Pa | ＜1×10⁻⁶ (ISO-B・VG), ＜1×10⁻⁷ (CF) | ||||
| Torr | ＜7.5×10⁻⁹ (ISO-B・VG), ＜7.5×10⁻¹⁰ (CF) | |||||
| Startup time | min | 2～3 | 4～5 | |||
| Shutdown time | min | 4～5 | ||||
| Max. backing pressure | Pa | 400 | 500 | |||
| Torr | 3 | 3.8 | ||||
| Recommended backing vacuum pump | L/min | ≧160 | ≧250 | |||
| Weight (kg) | 14 (ISO-B・VG), 17 (CF) | 34 (ISO-B・VG), 42 (CF) | ||||
| Controller model | TC010MB | |||||
※1：This max throughput is based on a 320 L/min (TG390/420ML), 1000L/min (TG900/1300ML) backing pump.
※2：The performance curves are identical to those of the standard model. Please refer to the standard model for each type.
Dimensions
Contact our sales representative for more information.
Performance curve
Contact our sales representative for more information.
Controller
Contact our sales representative for more information.
