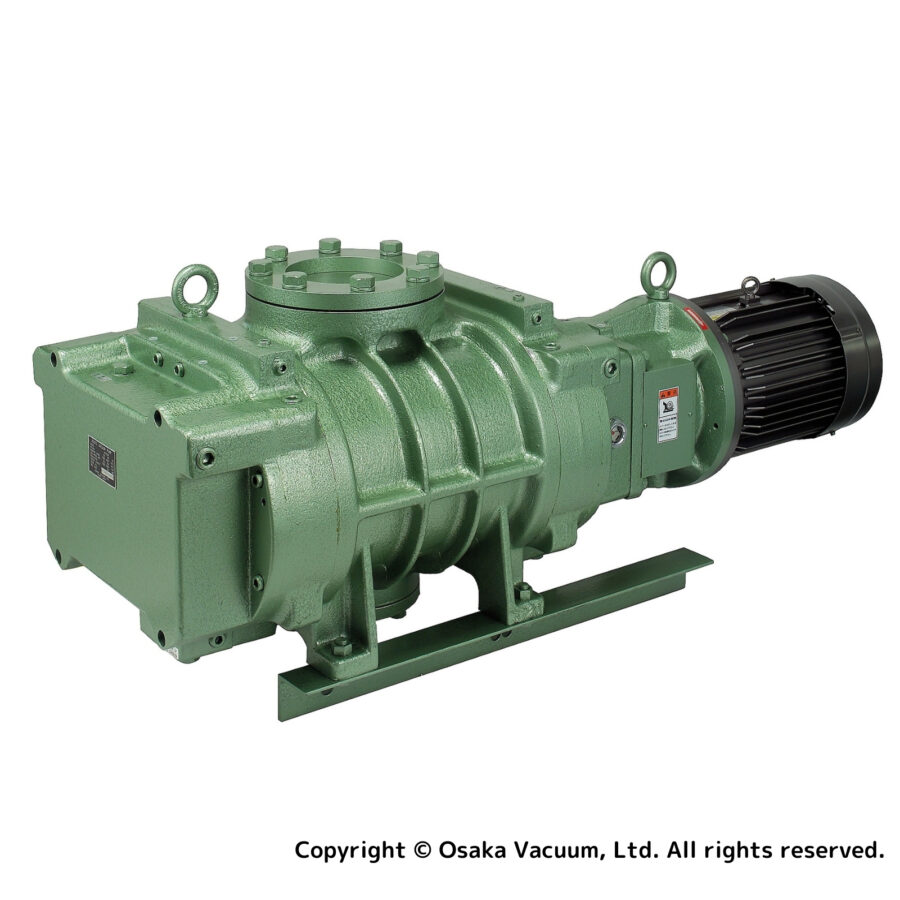

Mechanical Booster Pumps (Roots Vacuum Pumps)
RD1500/RD1510
Motor Directly-coupled Mechanical Booster Pumps
Features
- Its compact design integrates easily with existing systems.
- Lightweight and compact with a directly mounted motor.
- It can operate continuously at full load because the condensate doesn’t accumulate inside.
Application
- Semiconductors, FPD
- Thin Film Coating
- Metals, Steel, Industrial Equipment
- Medical, Chemical, Pharmaceutical, Food
- Research and Development
Specifications
Specifications
| Model | RD1500 | RD1510 | |
|---|---|---|---|
| Inlet | 150A JIS10KFF | ||
| Nominal volume flow rate (50/60Hz) ※1 | ㎥/h | 1350/1630 | |
| Allowable pressure difference [When using a standard motor] (kPa) | 50/60Hz | 7.0 | 19/16 |
| Base pressure (Pa) | Back pump single-stage RP | 7×10⁻² | |
| Back pump 2-stage RP | 1.3×10⁻² | ||
| Volume flow rate of standard backing pump (㎥/h) | 220～450 | ||
| Rotation speed (r/min) | 50/60Hz | 1500/1800 | |
| Standard motor output (kW) | 5.5 | 11 | |
| Oil capacity (L) | 4.0 | ||
| Cooling water flow rate (㎥/h) ※2 | 0.4 | ||
| Weight (kg) | With totally enclosed fan cooling motor | 530 | 570 |
| Without motor | 460 | ||
*1: The effective volume flow rate varies according to the backing pump. For details, contact our sales representative.
*2: Maximum cooling water temperature should be 30℃.
-Allowable ambient temperature: 10 to 40℃ during operation, -5 to +60℃ in storage.
-Drain water before storing to prevent freezing over.
