Mechanical Booster Pumps (Roots Vacuum Pumps)

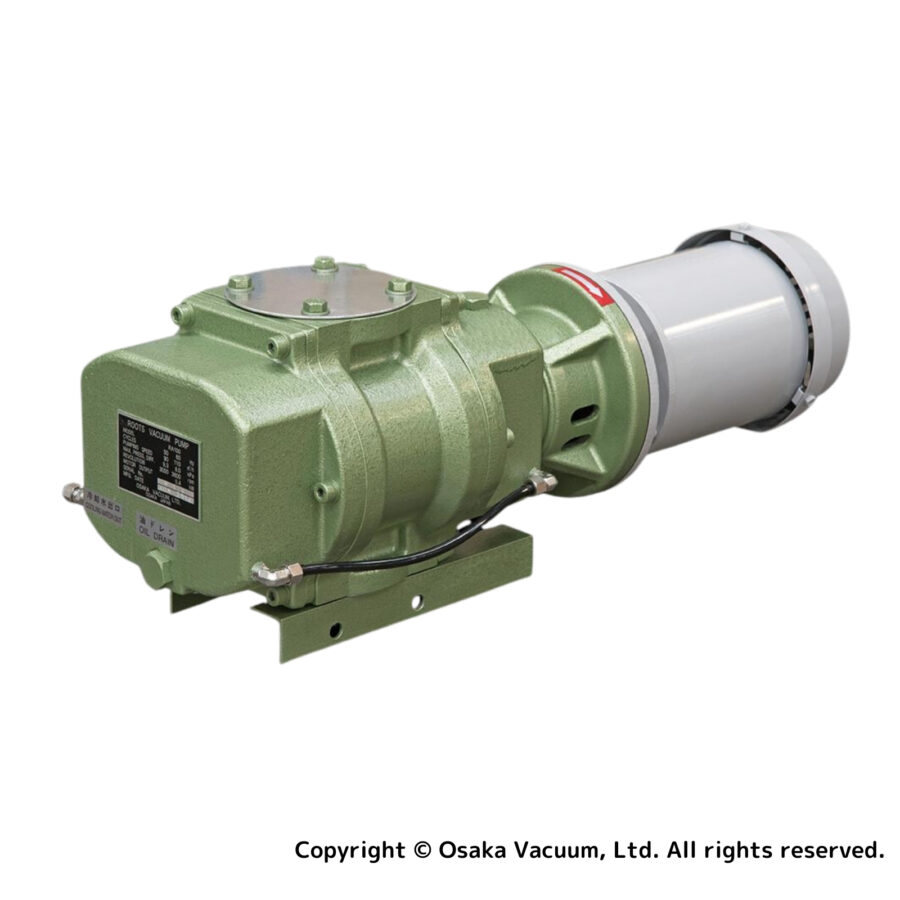

RA100
Motor Directly-coupled Mechanical Booster Pumps
Features
- Feature a compact footprint for easy integration into existing systems.
- The wetted surface won’t rust thanks to its aluminum alloy material.
- Because the internal shaft seal is a non-contact type, the maintenance interval is 2 or 3 times longer than the existing type.
- Operator can check two oil level at the same side, one at the oil supply port and the other at the drain port.
- Low noise, and low vibration.
Application
- Semiconductors, FPD
- Thin Film Coating
- Metals, Steel, Industrial Equipment
- Medical, Chemical, Pharmaceutical, Food
- Research and Development
Specifications
Specifications
| Model | RA100 | |
|---|---|---|
| Inlet | VG50 | |
| Nominal volume flow rate (50/60Hz) ※1 | ㎥/h | 90/110 |
| Allowable pressure difference [When using a standard motor] (kPa) | 50/60Hz | 9.3/8.0 |
| Base pressure (Pa) | Back pump single-stage RP | 7×10⁻² |
| Back pump 2-stage RP | 1.3×10⁻² | |
| Volume flow rate of standard backing pump (㎥/h) | 18～36 | |
| Rotation speed (r/min) | 50/60Hz | 3000/3600 |
| Standard motor output (kW) | 0.4 | |
| Oil capacity (L) | 0.33 | |
| Cooling water flow rate (㎥/h) ※2 | 0.06 | |
| Weight (kg) | With totally enclosed fan cooling motor | 25 |
| Without motor | 17 | |
*1: The effective volume flow rate varies according to the backing pump. For details, contact our sales representative.
*2: Maximum cooling water temperature should be 30℃.
-Allowable ambient temperature: 10 to 40℃ during operation, -5 to +60℃ in storage.
-Drain water before storing to prevent freezing over.
Dimensions
