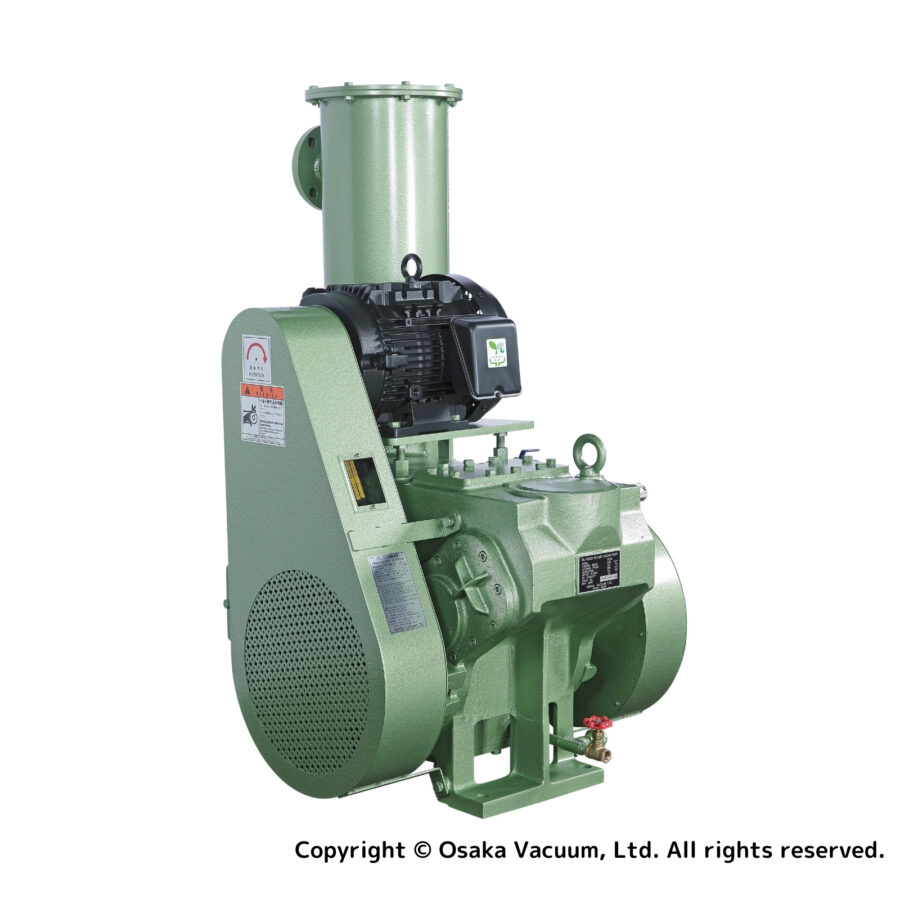

Oil-sealed Rotary Vacuum Pumps
P222
Oil-sealed Rotary Piston Vacuum Pumps
Features
- Stable and continuous operation at high pressures (low vacuum zones)
- Withstanding operation characterized by severe repetition
- Robust exhaust valve
- Sight glass for observing oil circulation
- Oil gauge for observing oil level
- Efficient oil separator
- Easy to make an inspection and maintain the exhaust valve case
- Easy cleaning oil tank because of a large cleanout
- Quickly discharge the oil accumulated in the oil tanks via the oil drain valve
- Easily maintained shaft sealing assembly
Specifications
Specifications
| Model | P222 | |
|---|---|---|
| Inlet | 80A JIS10KFF | |
| Nominal volume flow rate (50/60Hz) | ㎥/h | 222 |
| L/min | 3700 | |
| Permissible inlet pressure for continuous operation (kPa) | ≦5 | |
| Allowable backing pressure (kPa) | ≦120 | |
| Base pressure (Pa) | 0.7 | |
| Maximum volume for pump down time limit ※1 | min (min) | ≦10 |
| m³ (㎥) | ≦10 | |
| Rotation speed (r/min) | 50/60Hz | 500 |
| Standard motor output (kW) | 5.5 | |
| Oil capacity (L) | 15 | |
| Cooling water flow rate (㎥/h) ※2 | 0.5 | |
| Weight (kg) | With totally enclosed fan cooling motor | 440 |
| Without motor | 380 | |
*1: Applies to the time from atmospheric pressure to 7 kPa with a chamber free of leakage or outgassing.
*2: Maximum cooling water temperature should be 30℃.
*3: Please contact us if an explosion-proof motor is considered.
●Allowable ambient temperature: 10 to 40℃ during operation, -5 to +60℃ in storage.
●Drain water before storing to prevent freezing over.

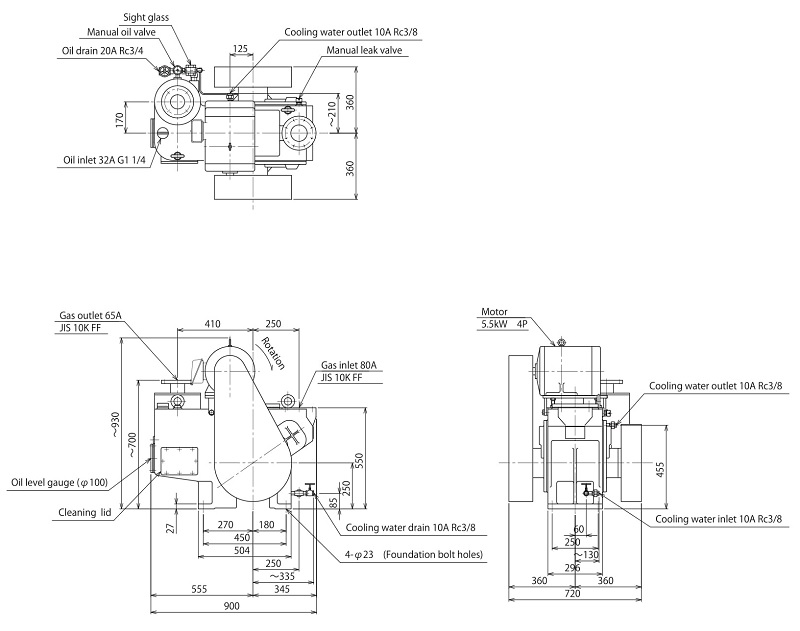

Dimensions
