Ball Bearing Turbo Molecular Pumps
A ball bearing uses balls as rolling elements. It is a versatile bearing capable of supporting radial loads, thrust loads, or both. Its characteristics include a low manufacturing cost, easy troubleshooting, high resistance to external shock, and a lighter weight than magnetic bearing types due to its simple structure and fewer components.
Ball bearing-type turbo molecular pumps are further categorized as “grease-lubricated” or “oil-lubricated.” Osaka Vacuum offers a wide range of these pumps.
List of Ball Bearing Turbo Molecular Pumps
TG-F SERIES
Grease-lubricated ball bearing type Turbo Molecular Pumps
Grease-lubricated ball bearing models with a pumping speed of 50 to 2400 L/s.
Since its launch in 1999, the TG-F Series has been one of our best-selling turbo molecular pump models. Its grease-lubricated ball bearings make it compact and robust with high shock tolerance. This feature enables the pump to be installed on portable equipment or moving parts.
Point
Mounting orientation free: flexibility in vacuum equipment design
Maintenance-free: No grease refill between the overhaul cycle of 20,000 to 30,000 hours.
Compact and lightweight design.
Models that can withstand air inrush are available. Models that can withstand shock are also available, making them suitable for use in portable systems or moving parts.
Onboad controller models (TG60F, TG70F, TG240)
Industrial fields
- Optical Industry
- Display
- Laboratory instruments
- Energy
- Material
- Automotive / Aviation
- Medical / Pharmaceuticals
- Aerospace / R & D

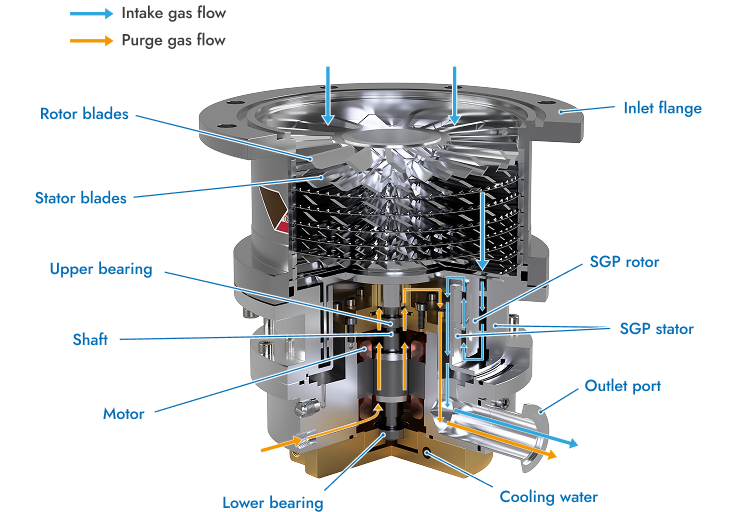

Cross-section

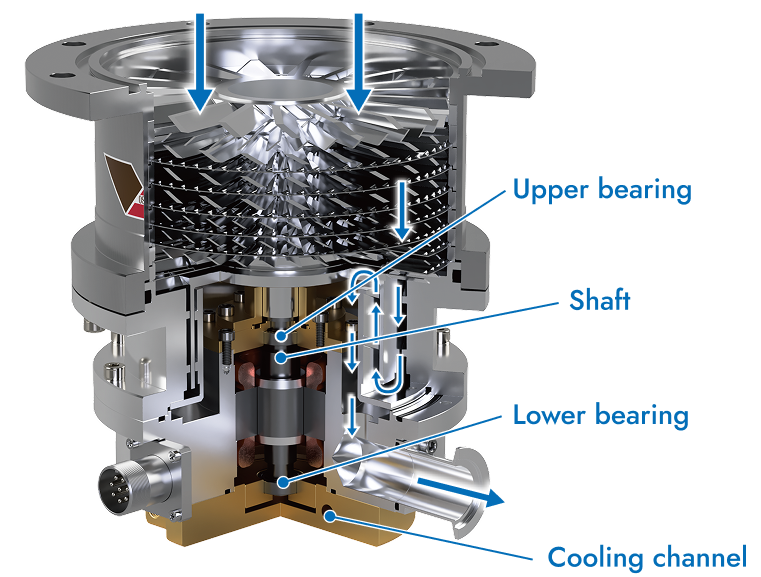

TG-F SERIES Custom models
Grease-lubricated ball bearing type Turbo Molecular Pumps
Magnetically shielded TG-FS series
Point
Can operate in a magnetic field without too much braking effect or heating up on the rotor.
Applicable to all the Osaka Vacuum TMP
Suitable for an accelerator. An extra-long cable (up to around 200 m) to a controller is also available.
Industrial fields
- Laboratory instruments
- Energy
- Aerospace / R & D
TG SERIES
Oil-lubricated ball bearing type Turbo Molecular Pumps
Oil-lubricated ball bearing models with pumping speeds of 50 to 2400 L/s.
Featuring a compound rotor design, the pump offers an excellent balance of performance and durability, making it widely used across a variety of applications, from general industries such as optics, energy, and automotive to R&D. Corrosion-resistant models are also available for applications involving corrosive gases.
Point
Reliable operation, even under harsh conditions.
TG203–TG1813 (200 – 1800 L/s): Corrosion-resistant models for applications involving corrosive gases.
TG2810–TG5500 (2800 – 5500 L/s): Standard models for clean applications and corrosion-resistant models for applications involving corrosive gases.
Industrial fields
- Optical Industry
- Energy
- Material
- Automotive / Aviation
- Medical / Pharmaceuticals

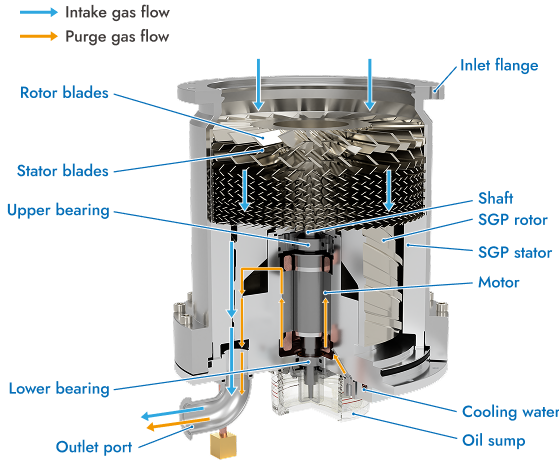

Cross-section
TS SERIES
Helical Grooved Vacuum Pumps
Oil-lubricated ball bearing type molecular drag vacuum pumps with pumping speed of 25 and 440 L/s.
With an all-drag stage design, the pump provides high throughput and a high compression ratio at medium to low vacuum. Its ability to operate under high load or long duration makes it ideal for evacuating large chambers.
Point
High throughput at medium to low vacuum.
Capable of withstanding 300,000 times or more air inrushes (TS50)
Industrial fields
- Optical Industry
- Laboratory instruments
- Energy
- Material
- Automotive / Aviation
- Medical / Pharmaceuticals

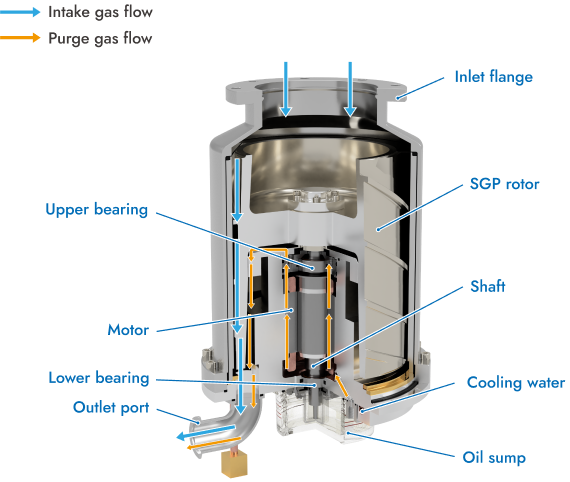

Cross-section
